Frequency Containment Reserve (FCR): Key to Grid Stability
What is Frequency Containment Reserve?
Frequency Containment Reserve (FCR) is a vital ancillary service used to maintain the stability of the electrical grid by responding to frequency deviations. When there is an imbalance between electricity supply and demand, the grid frequency can drift away from its standard value (e.g., 50 Hz in Europe). FCR is designed to automatically and rapidly counteract these deviations, helping to restore balance and prevent potential disruptions or blackouts.
FCR operates as the first line of defense in grid stability, relying on decentralized energy resources like batteries, generators, or even flexible loads. These assets can quickly increase or decrease their power output, ensuring the grid frequency stays within safe operating limits. This service is crucial for both maintaining reliable power delivery and supporting the integration of variable renewable energy sources, such as solar and wind.
The Importance of Frequency Containment Reserve (FCR)
Frequency Containment Reserve (FCR) is essential for maintaining the stability and reliability of the power grid. Electricity grids are designed to operate at a specific frequency—typically 50 Hz in Europe—and even small deviations can have serious consequences, such as equipment failures or, in extreme cases, widespread blackouts.
Consider a scenario where a power plant suddenly fails. The abrupt loss of electricity generation causes the grid frequency to drop, creating an imbalance between supply and demand. Without immediate intervention, this imbalance could escalate, impacting consumers and infrastructure. FCR steps in automatically and within seconds, activating pre-committed energy assets to either supply additional power or reduce consumption, restoring stability.
The importance of FCR has grown with the increasing use of renewable energy sources like wind and solar, which are inherently variable. For instance, a cloudy day can cause solar output to dip, or changing wind patterns can impact wind turbine performance. FCR provides a safety net, smoothing out these fluctuations to ensure consistent grid performance.
In practice, FCR utilizes various energy resources, including batteries, industrial loads, and traditional power plants. For example, a grid-connected battery might discharge stored energy during a frequency drop, while an industrial facility could momentarily reduce its electricity usage to help balance the grid.
How Does FCR Work?
Frequency Containment Reserve (FCR) is an essential mechanism that maintains the stability of the electrical grid by automatically responding to frequency deviations. Here’s how it operates:
- Detection of Frequency Deviations: The grid’s nominal frequency is continuously monitored. Any deviation from this standard indicates an imbalance between electricity supply and demand.
- Automatic Activation: When a deviation is detected, FCR resources are automatically activated within seconds to counteract the imbalance. These resources can include power plants, batteries, or demand-side units that adjust their output or consumption accordingly.
- Stabilization: The rapid response of FCR helps stabilize the frequency at a stationary value, preventing further deviations and potential grid failures.
- Restoration: Once the frequency is stabilized, other reserves, such as Frequency Restoration Reserves (FRR), may be engaged to restore the frequency to its nominal value.
This automatic and rapid response is crucial for preventing cascading failures and ensuring a reliable electricity supply.
Types of FCR
Frequency Containment Reserve (FCR) is divided into three main types, each serving a specific role in maintaining grid stability and addressing frequency deviations:
- FCR-N (Normal): FCR-N is used to manage minor frequency deviations that occur during standard grid operations. It ensures stability by quickly responding to small fluctuations within a narrow range (e.g., ±0.1 Hz). This reserve is activated automatically and continuously balances supply and demand in real-time to prevent frequency drift.
- FCR-D (Disturbance – Up): FCR-D-Up is designed to respond to sudden drops in frequency, typically caused by unexpected surges in demand or significant generation outages. This reserve is critical for quickly injecting power into the grid to restore the frequency to its nominal value, preventing cascading failures.
- FCR-D (Disturbance – Down): FCR-D-Down comes into play during sudden increases in frequency, often resulting from excessive generation or rapid drops in demand. This reserve works by reducing power output from generators or shifting load to re-balance the grid frequency.
Each type of FCR complements the others, ensuring a robust response to a variety of scenarios that could otherwise destabilize the electricity grid. By coordinating these reserves, system operators can maintain grid reliability and prevent blackouts.
When Is FCR Activated ?

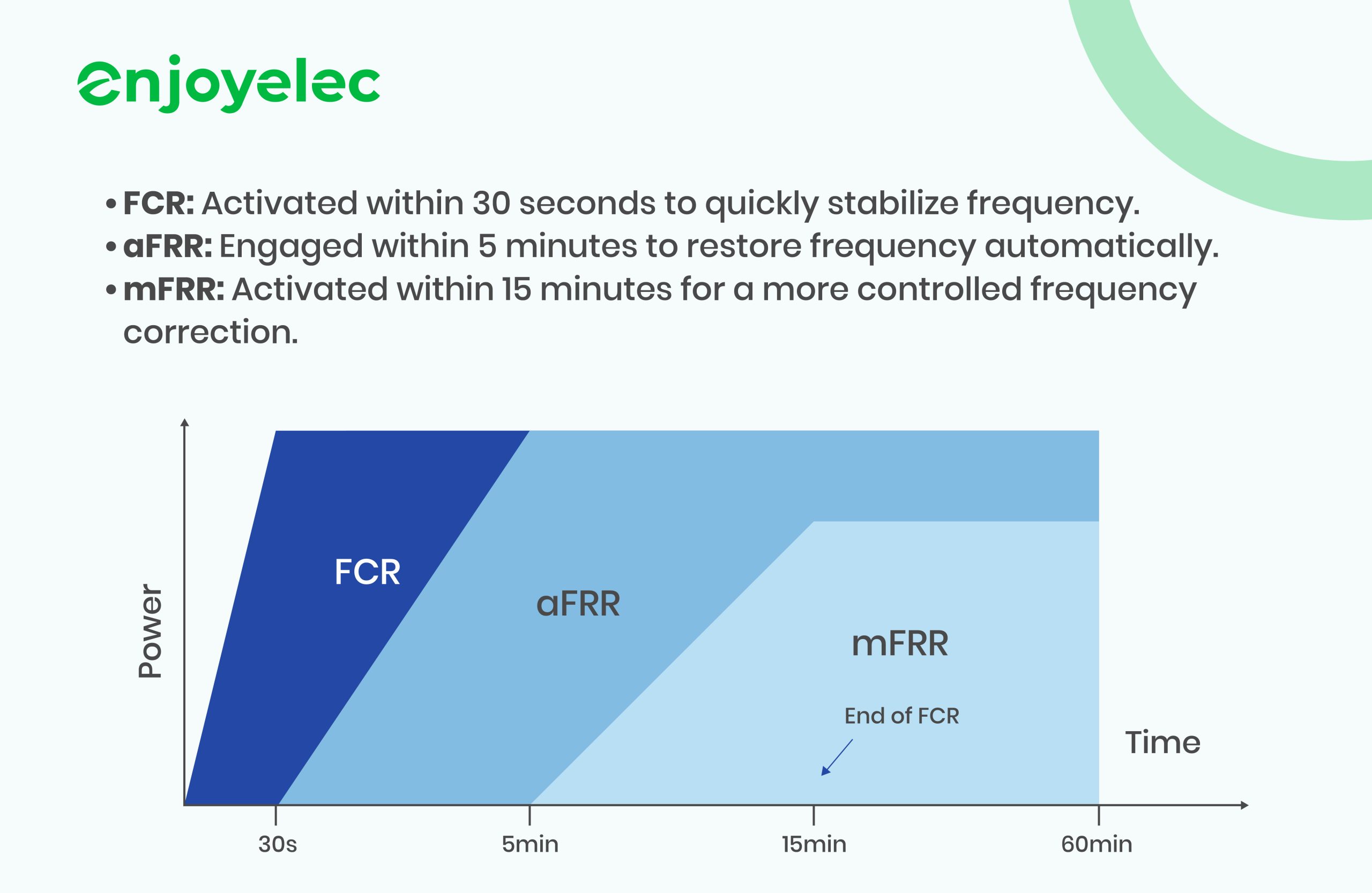

Operating Reserve is essential for maintaining grid frequency stability. It is typically divided into three categories: Primary Reserve, Secondary Reserve, and Tertiary Reserve, each defined by its activation time and duration of activation. Frequency Containment Reserve (FCR) is the first and fastest line of defense when the grid experiences a significant frequency deviation. Also known as primary reserve, FCR is activated automatically within 30 seconds of detecting a disturbance, such as the sudden loss of generation or a sharp increase in demand. This immediate response is critical for stabilizing the grid in real-time, ensuring that the frequency doesn’t drop too low or rise too high, which could otherwise lead to grid instability or even blackouts.
The role of FCR is focused solely on initial stabilization. It provides a quick, short-term solution—usually up to 15 minutes—to bring the frequency back to acceptable levels. This quick response is primarily achieved through the automatic activation of power plants, particularly those with fast-reacting technologies like hydropower and battery storage systems. These technologies can rapidly adjust their output to either absorb excess power or inject more energy into the grid as needed, helping mitigate the frequency deviation immediately.
However, FCR’s effectiveness is limited to the short-term. Once the initial deviation is addressed, the grid requires further support to maintain stability. This is where Automatic Frequency Restoration Reserve (aFRR) takes over.
aFRR (secondary reserve) is activated once FCR has provided initial stabilization. While FCR provides an immediate, short-term response, aFRR helps with a more sustained, medium-term solution. It is activated within 5 minutes (depending on the country), and can be provided by a range of devices such as batteries, wind farms, and biogas plants. One unique feature of aFRR is its ability to combine different technologies, offering both quick activation and the ability to provide power for longer durations. For example, a battery combined with a biogas plant can both respond quickly to frequency deviations and supply energy for extended periods, allowing the grid to return to equilibrium more smoothly.
Finally, when both FCR and aFRR are no longer sufficient to handle the frequency imbalance, the grid turns to Manual Frequency Restoration Reserve (mFRR), or tertiary reserve. mFRR is activated manually by grid operators (Transmission System Operators, or TSOs), typically within 15 minutes. While this is the slowest of the three reserves, it plays a crucial role in addressing long-term frequency deviations that cannot be managed by FCR or aFRR. The manual nature of mFRR ensures that it is used as a strategic response, providing backup power to stabilize the grid over extended periods until the frequency returns to normal.
