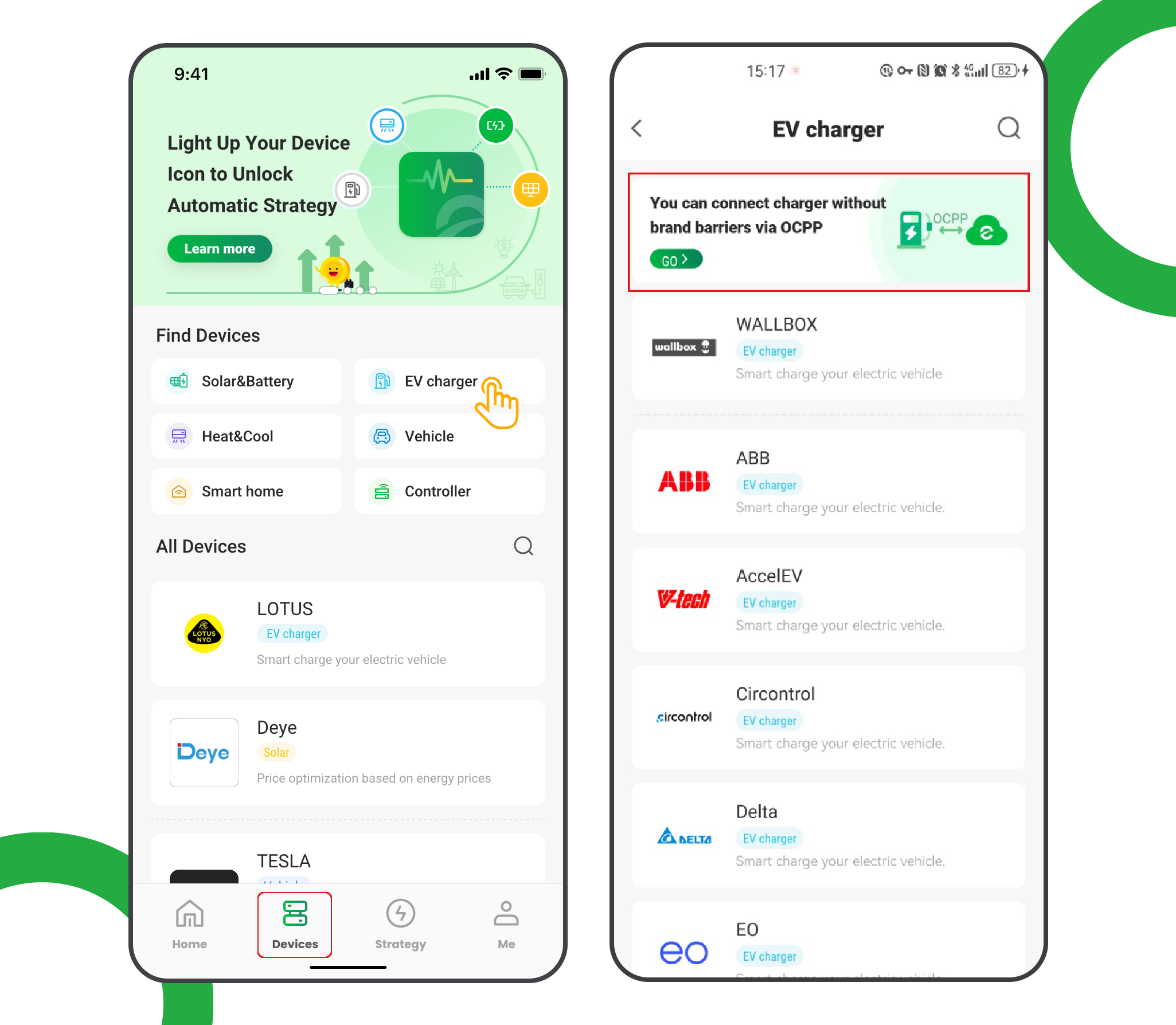

Step 1. Retrieve OCPP information from enjoyelec HEMS App

• Enter the app and open ‘Devices’
• Select ‘EV charger’
• Tap the ‘OCPP connection’ banner

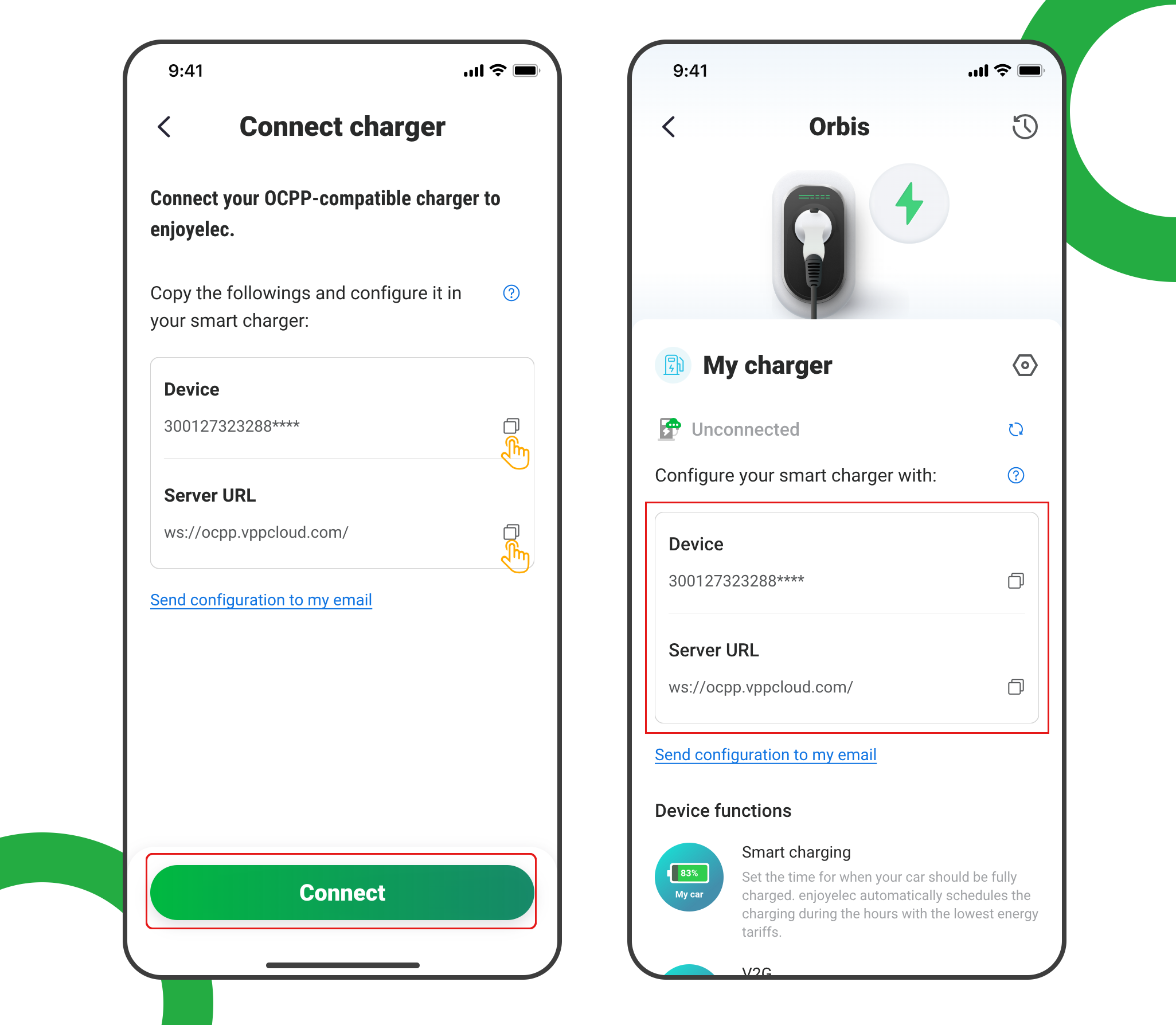

• Tap ‘Connect’ to access the OCPP information retrieval page
• Copy the Server URL and Device ID, which will be used later when configuring the charging station

Step 2. Access the configuration portal

The charger must be configured to connect to the Internet via Wi-Fi or Ethernet. It can be done via the Orbis app on your phone or via the Orbis configuration webpage on the charger.

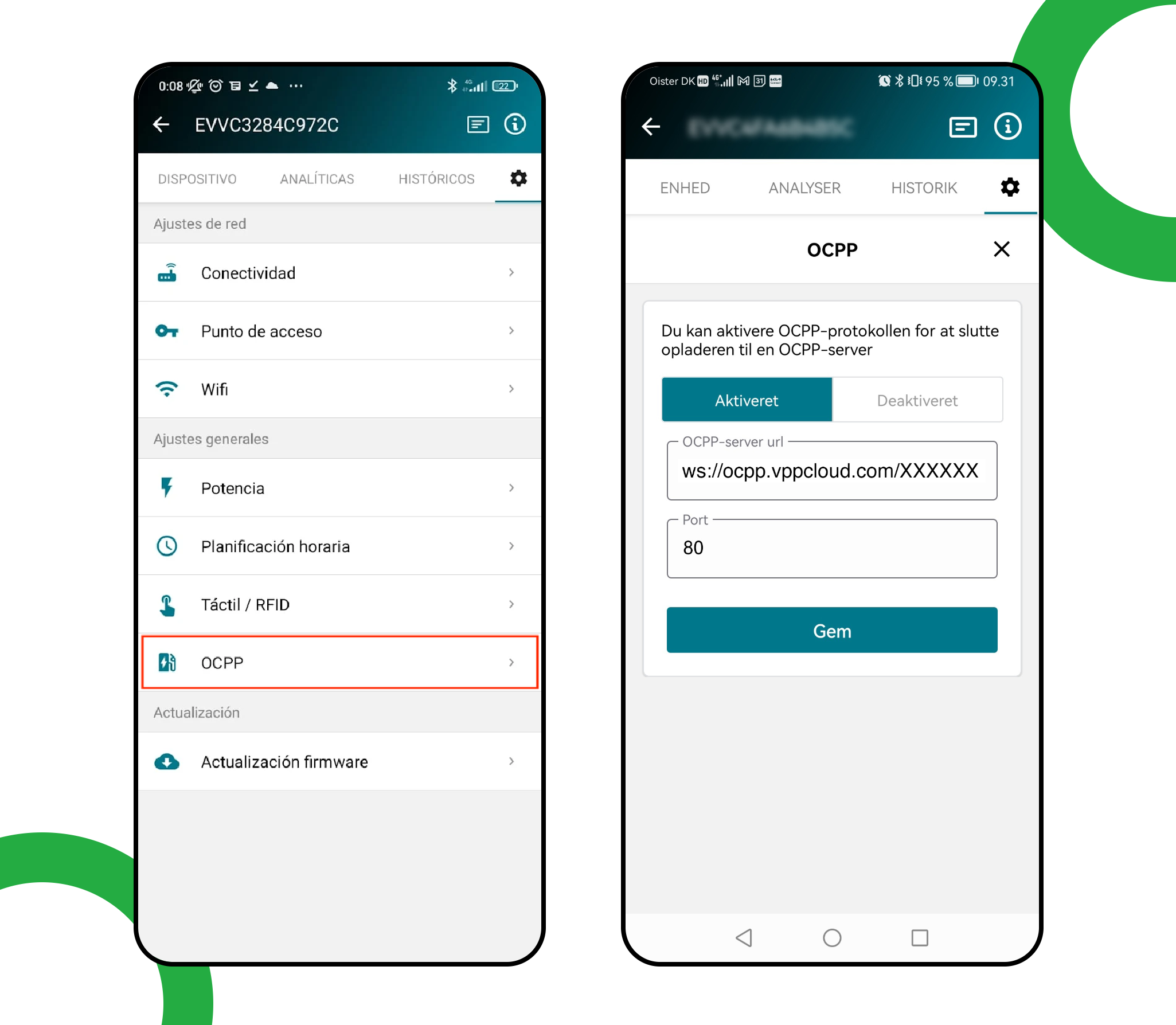

–Via the mobile App

• Install the e-Viaris mobile app
• Follow the manual to connect the app to your charger
• From the “settings menu” select “OCPP”
• Set the URL: ws://ocpp.vppcloud.com/XXXXXX where XXXXX is replaced with the Device ID obtained in Step 1 above.
• For example: ws://ocpp.vppcloud.com/300127323288****
• Set Port to : 80
• Click “Save”

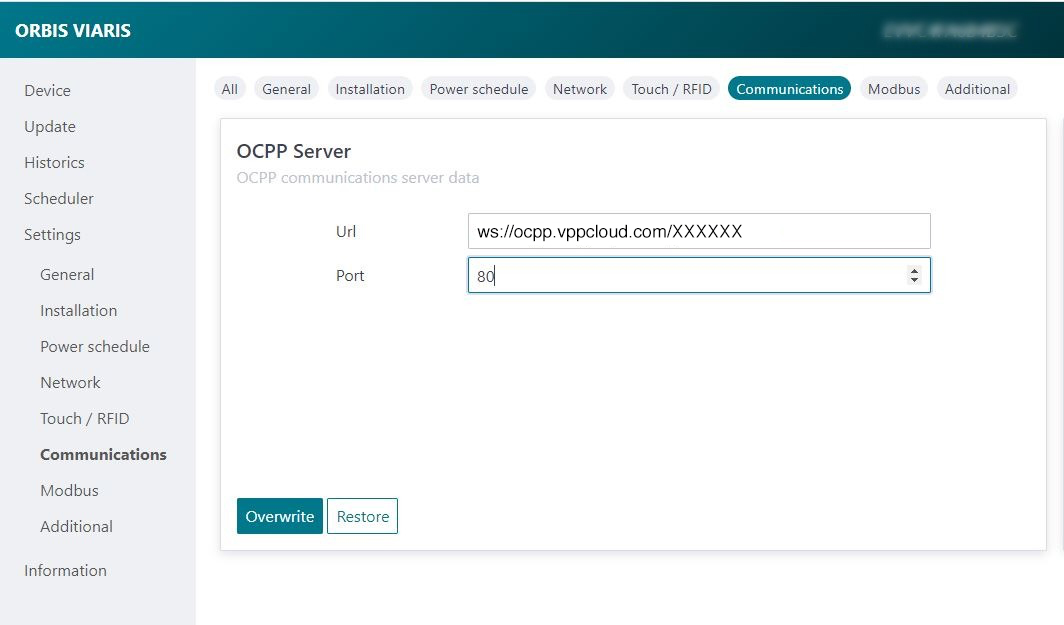

-Via the charger configuration portal

Alternately you can connect to the charger via the configuration portal using the web browser on your computer.

• The URL and Port settings are the same as provided for the mobile app. Ensure XXXXXX is replaced with the Device ID obtained in Step 1

• Click Overwrite when complete.

Step 3. Complete the Setup

After a few minutes, the charging station will be successfully added to the app. You can now see and manage it within your enjoyelec HEMS App.
