Shelly Meter Usage Instructions:

Step 1 – Connect the Meter to the power supply.

  • Applicable range: 250VAC, 50/60Hz; Maximum current: 16A.

Step 2 –Connect the meter to the network

  • According to Shelly’s user manual, connect the meter to the network and make sure it is within the same local area network as the controller.

Step 3– Connect the meter to the app.

  • For detailed configuration steps, refer to the document below.

Step 4 – Connect the electrical device to the meter to enable control.

  • Control the device and monitor power consumption through the app.

Explanation

  • Connect the meter to power supply.
  • According to Shelly’s user manual, connect the meter to the network and make sure it is within the same local area network as the controller.

Smart Meter configuration process in the app:

Step 1

  • Open the enjoyelec app, and on the homepage or Controller page, find “Add device.”

Step 2

  • On the “Add device” page, select the relevant parameters for configuring the Smart Relay from the list.

Type: Smart home.

Sub-type: Smart Meter

Brand: Shelly

Model: Pro3EM400

Connection: Shelly

Step 3

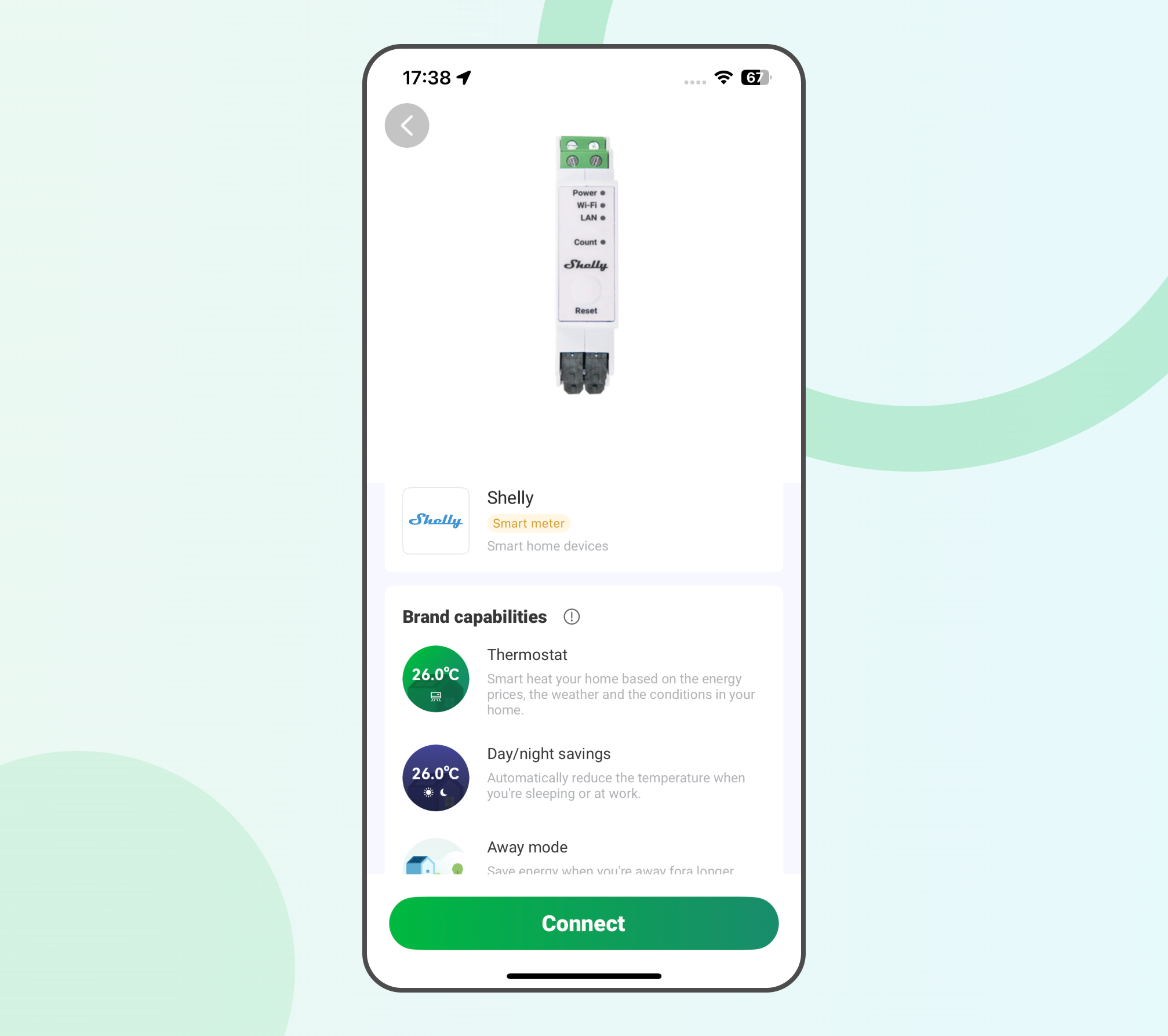

  • Click “Connect” to start connecting to devices within the same local area network.

Step 4

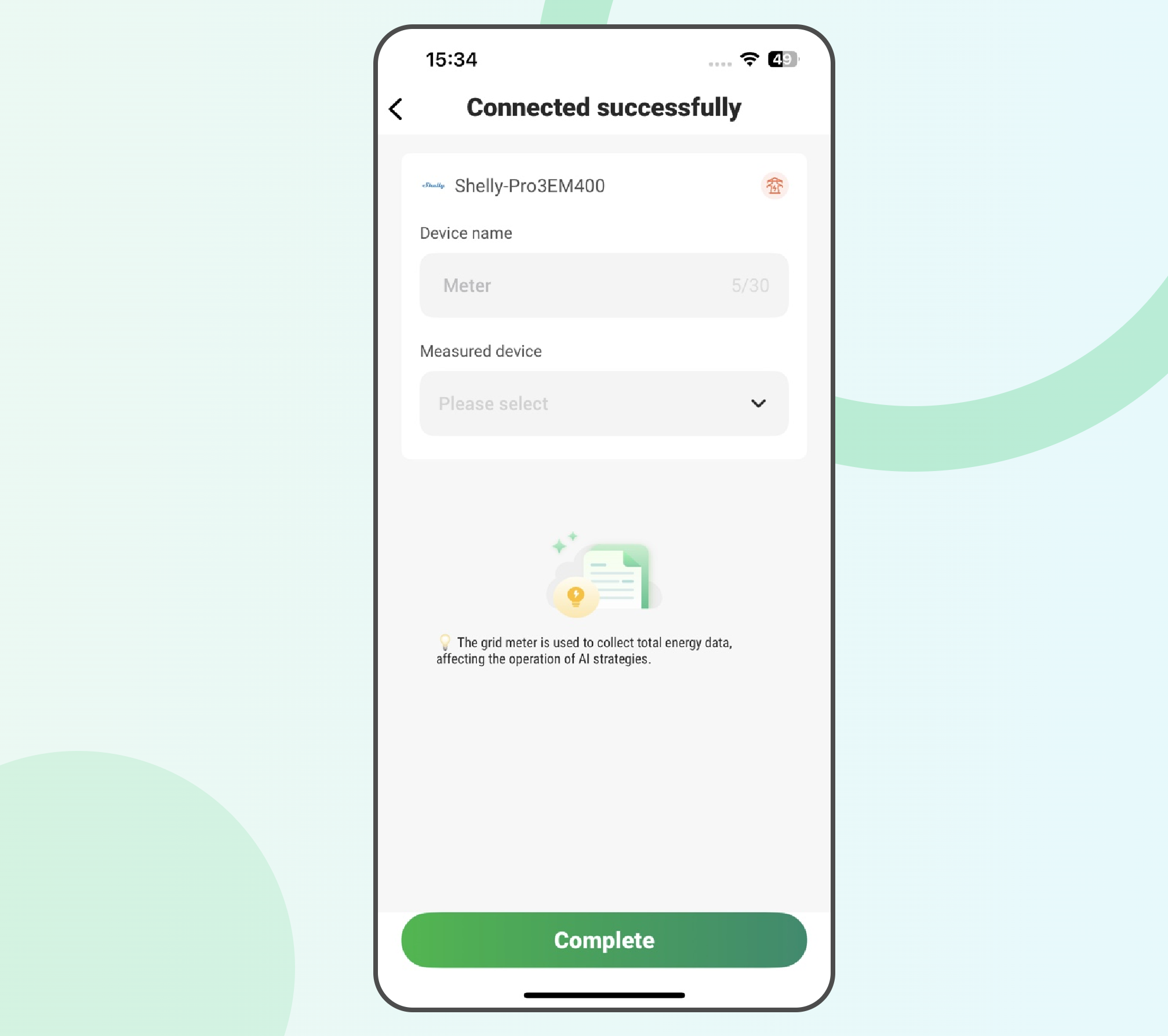

  • After successfully establishing the shelly connection, the device model of the Smart Relay will be displayed on the app.
  • Click “Complete” to add the Smart Relay to the app.

Step 5

  • You can enter the Smart Meter management page on the app to control the switch or check the power consumption.
